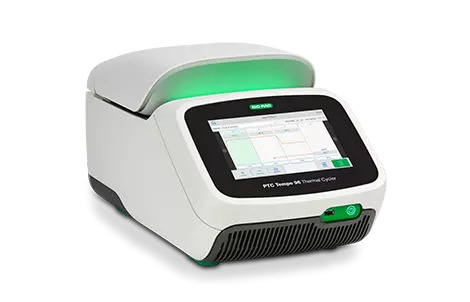

PTC Tempo Thermal Cycler
The PTC Tempo Thermal Cycler represents the next generation of conventional PCR thermal cyclers from Bio-Rad. Engineered to
maintain thermal performance that delivers accurate results, the PTC Tempo Thermal Cycler offers the flexibility to scale with your
laboratory. The new design features a refreshed, intuitive user interface and flexible connectivity options for streamlining protocol management. A motorized lid enables automation, taking your PCR to the next level with modern instrument control.
Product features
- Get the consistent performance you need with the same thermal accuracy and uniformity
you can trust - Modern user interface with enhanced touch sensitivity for an intuitive experience
- Expanded connectivity — Wi-Fi, ethernet, and USB
- Cloud connectivity: create and send protocols from your BR.io cloud platform
- Network storage drive access for file management
- Secure user mode for regulated environments
Applications and Uses
- Amplification/PCR
- Cloning
- Cycle sequencing
- Gene expression studies
- Mutagenesis
Specifications
Sample block type
Fixed
Weight
15 kg (33 lb)
Dimensions (W x D x H)
28 x 50 x 26 cm (11 x 20 x 10 in)
Power
100–240 V, 50/60 Hz, 850 W max
Electrical approvals
IEC, CE
Memory
4.6 GB
Noise level
<90 dB
Lid type automated
Automated
Touchscreen display
8 in. LCD
Programming options
Step-based graphical and automatic
Security features for regulated environments
Password protection and secure mode
Reporting
Exportable run logs and system logs
Temperature control modes
Calculated and block
Onboard operating system
Onboard operating system Linux
Communications
WiFi, BR.io, USB A 2.0, Ethernet
Heating and cooling method
Peltier
Lid heating
30–110°C
Temperature range
4–100°C
Thermal accuracy
+/- 0.2°C of programmed target at 90°C
Thermal uniformity
+/- 0.4°C well-to-well within 10 sec of arrival at 90°C
Gradient operational range
30–100°C
Gradient programmable span
8 rows, 1–24°C
