OPTIZEN™ POP
OPTIZEN POP measures transmittance or absorbance for each wavelength of a sample in the ultraviolet and visible ray bands, and through
this, quantitative characteristics such as concentration and purity can be identified.
Product Features
- User Convenience
All functions of the existing PC software are loaded into OPTIZEN POP for faster and more
convenient use. - Amazing Measurement Speed
The fast and flexible software delivers the best results at analysis speeds up to 1.5 times faster
than conventional products. - Compact Size
The compactly designed OPTIZEN POP increases the efficiency of the laboratory space. - Prompt Service
Based on OPTIZEN's proprietary technology, service is available from design to manufacturing in Korea. - Wide Scalability
Designed to enable high-precision/high-resolution measurement in a wide range from ultraviolet to visible light, it can be used in various application fields. - Emotional Design
Now you can enjoy another pleasure with emotional design.
Specifications
| Photometrics System | Single-beam type |
|---|---|
| Light Source(s) | Tungsten Halogen Lamp & Deuterium Lamp (Built-in light source auto interchanging motor) |
| Detector | Silicon Photodiode |
| Spectral Bandwidth | < 1.8 nm |
| Wavelength Range | 190 to 1100 nm |
| Wavelength Display (setting) | ≥ 0.1 nm |
| Wavelength Accuracy | ± 0.5 nm (at D2 peak 656.1) |
| Wavelength Repeatability | ± 0.1 nm |
| Slew Rate | 7,800 nm/min |
| Scanning Speed | 4,000 nm/min |
| Photometric Range | Absorbance : -3 A to 3 A Transmittance : 0% to 300% |
| Photometric Accuracy | ± 0.005 Abs at 1.0 Abs ± 0.003 Abs at 0.5 Abs |
| Photometric Repeatability | < ± 0.003 Abs |
| Baseline Stability | 0.001 Abs/h (700 nm, one hour after light source) |
| Baseline Flatness | < ± 0.001 A (200 to 1,100 nm) |
| Stray Light | Less than 1.00 %(198 nm KCl) Less than 0.05 %(220 nm NaI) Less than 0.05 %(340 nm NaNO2) |
| Monochromator | Czerny-Turner Monochromator |

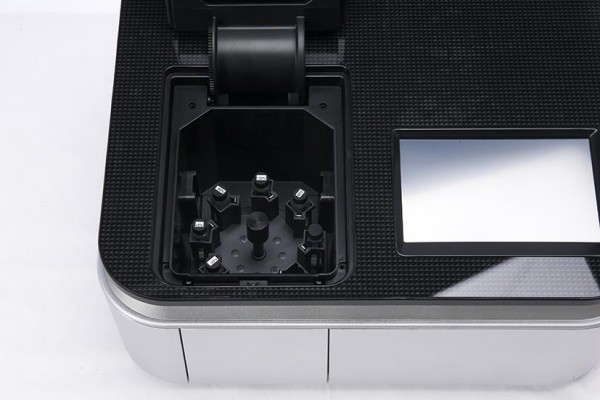

| Standard Cell Holder | Multi-cell (8 cells) |
| Lamp Interchange Wavelength | 340 to 410 nm (Default 370 nm) |
| Operating System (OS) | Windows CE (Embedded) |
| Display | 7-inch (resolution: 1024 x 600) |
| Control Options | Onboard with built-in touchscreen, Computer |
| Dimensions(W*D*H) | 433 mm * 381 mm * 180 mm |
| Power Requirement | AC100 to 240V, 50/60Hz, 140VA |
| Weight | 8 kg |
| PC Software | (optional) OPTIZEN View for Windows® |
