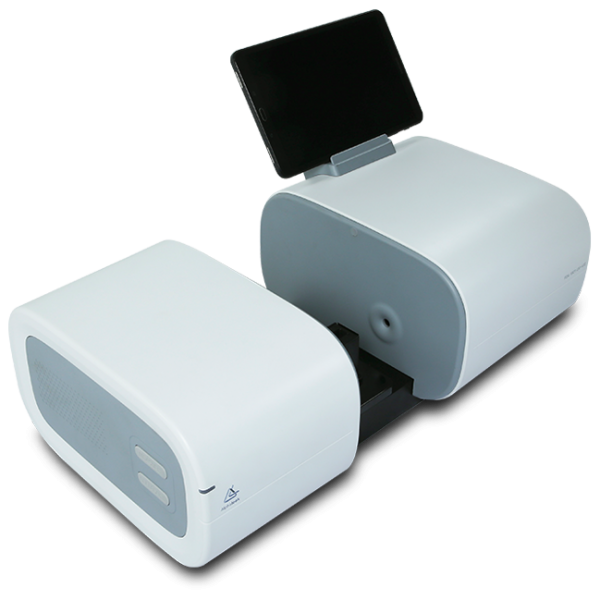

OPTIZEN™ ALPHALOOK
PDA UV-Vis spectrophotometer can obtain an Ultraviolet-to-NIR broad spectrum at one time by using a simple and precise optical device and
check the result value of the wavelength data that the user wants to see.
check the result value of the wavelength data that the user wants to see.
In addition, the product can handle very conveniently a complicate sample or a lot of samples with a simple touch by using compatible
accessories.
accessories.
Product features
- Very simple interface.
- Data compatibility with desktop PC and tablet.
- Supporting tablet clouds printing and bluetooth link
- Supporting Windows-based desktop PC software
Specifications
| Photometrics System | Photodiode array, PDA |
|---|---|
| Spectral Bandwidth | 1.0 nm (190 to 1100 nm) |
| Wavelength Range | 190 to 1100 nm |
| Wavelength display(setting) | 0.1 nm |
| Wavelength accuracy | <± 0.5 nm |
| Wavelength repeatability | <± 0.1 nm |
| Photometric accuracy | <± 0.005 Abs |
| Photometric stability | < 0.001 Abs/h |
| Photometric noise | 0.001 Abs |
| Light Source | Tungsten Halogen Lamp & Deuterium Lamp |
| Typical scan time | 2 S [Full range] |
| Standard cell Holder | Single cell |
| Detector | Photodiode array |
| Line Voltage | 90~264 VAC |
| Line Frequency | 47~63 Hz |
| Dimensions(WｘDｘH) | 586.9(W)ｘ315(D)ｘ203(H) |
| Operating System | Windows / Android |
| Weight | 14.52 kg |
